Haltech

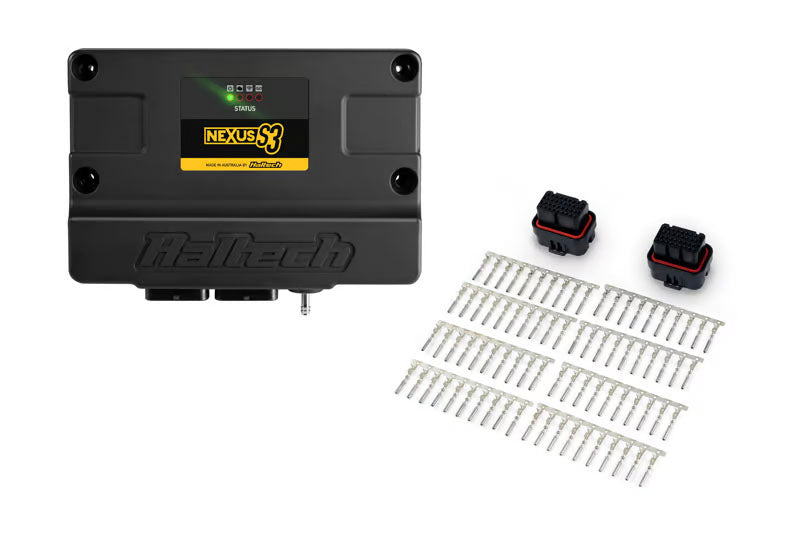

Nexus S3 ECU + Plug and Pin Set - HT-213100

Nexus S3 ECU + Plug and Pin Set - HT-213100

$3,159.00 AUD
$3,159.00 AUD
Sale Sold out
Taxes included.
ECU OVERVIEW
Haltech's Nexus S3 is the successor to the acclaimed Elite 2500, offering a serious upgrade in performance and functionality. The S3 combines all the classic functionality of the Elite 2500 with new features and the superior processing power of the successful Nexus platform.
  • 8 x peak/hold injector drivers (can be used as low side drive outputs)
  • 8 x low current ignition outputs (can be used as low side drive outputs)
  • 6 x low side drive outputs, PWM capable (DPOs)
  • 4 x push-pull / half bridge outputs (8A, PWM capable), eg for electronic throttle
  • 1 x ECR output
  • 11 x 0-5V analog inputs with redundancy for electronic throttle and switchable 5V pullup
  • Trigger and home inputs with differential inputs, adjustable thresholds and glitch filters
  • 6 x synchronous pulsed inputs, zero crossing or adjustable thresholds - cam sensor inputs, frequency inputs or 0-5V analog inputs
  • 1 x on-board wideband controller, supporting NTK and LSU4.9
  • 1 x on-board 4 bar MAP sensor
  • 2 x CAN ports with switchable termination

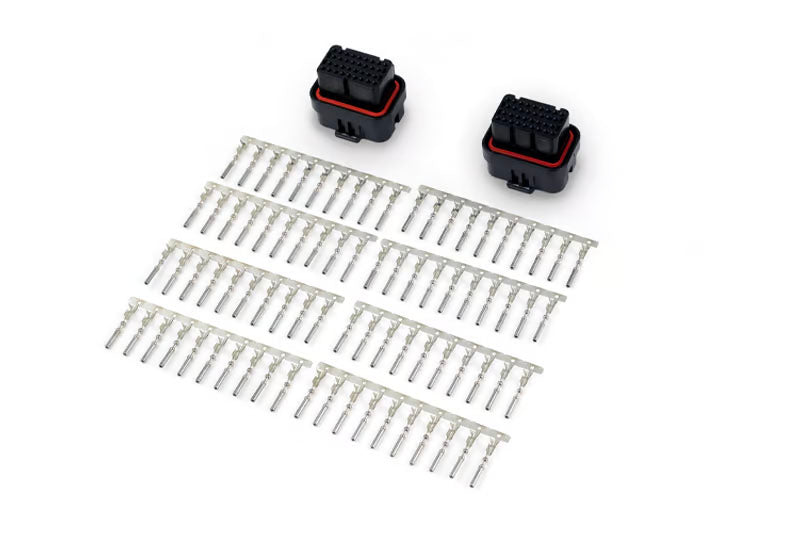

Superseal connector
  • 34 Pin (Key 3) Plug and Pins
  • 34 Pin (Key 2) Plug and Pins
